UML Class Diagram

What is a UML Class Diagram?

A UML (Unified Modeling Language) class diagram is a visual representation of classes and their relationships in an object-oriented system. It helps in understanding the structure of the system, showing how classes interact with each other.

• Class name
• Attributes (properties)
• Methods (functions)
• Relationships (associations, inheritance, etc.)

UML Class Notation

The class notation includes:

• Class name
• Attributes
• Methods
• Visibility:
  • + Public
  • - Private
  • # Protected

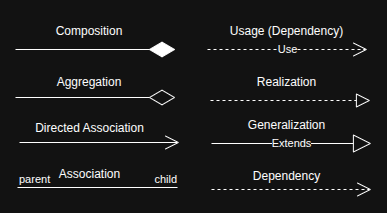

Relationships between Classes

Association

Association represents a bi-directional (two-ways relationship) relationship between two classes where one class uses or interacts with another. It is a one-to-one or one-to-many relationship. It typically means uses, has-a, works with, or belongs to.

• Permanent reference between classes. This means one class holds a reference to another class as part of its state or structure, not just temporarily within a method

Example: Suppose a Car has a Engine and Wheel. This is an association because a car object is associated with an engine object and multiple wheel objects.

• Each Car has one Engine and each Engine belongs to one Car
• Each Car contains multiple Wheels and each Wheel belongs to one Car

Another example is that Library has many Books. The association is bi-directional, meaning the Library contains multiple Books, and each Book belongs to one Library.

Directed Association

A directed association is a one-way (unidirectional) relationship where one class points to another, indicating that one class uses or interacts with another.

Example: Suppose a Driver drives a Car. The association is directed from Driver to Car, meaning the Driver uses the Car, but this car does not necessarily belong to the Driver.

Another example is that Teacher teaches this Course. The association is directed from Teacher to Course, meaning the Teacher teaches the Course, but this course does not necessarily belong to the Teacher.

Aggregation

Aggregation represents a part-of relationship where one class is a whole and another class is a part. It is a one-to-many relationship where the part can exist independently of the whole.

Example: A Team consists of multiple Players. The Team is the whole, and the Players are the parts. If the Team is deleted, the Players can still exist independently.

Another example is that Department has many Employees. The Department is the whole, and the Employees are the parts. If the Department is deleted, the Employees can still exist independently.

Composition

Composition is a special type of aggregation that represents a strong part-of relationship where the part cannot exist independently of the whole. It is a one-to-many relationship where the part is tightly coupled with the whole. If the whole is deleted, the parts are also deleted.

Example: A House consists of multiple Rooms. The House is the whole, and the Rooms are the parts. If the House is destroyed, the Rooms are also destroyed.

Another example is that Book has many Chapters. The Book is the whole, and the Chapters are the parts. If the Book is deleted, the Chapters are also deleted.

Generalization (Inheritance)

Generalization (also known as inheritance) represents a is-a relationship where one class (subclass or child) && from another class (superclass or parent). The subclass inherits the attributes and methods of the superclass, allowing for code reuse and polymorphism.

Example: A Bird is a type of Animal, and a Fish is also a type of Animal. Both Bird and Fish inherit from the Animal class.

Another example is that Vehicle is a type of Transport. The Vehicle class inherits from the Transport class, allowing it to reuse its attributes and methods.

Realization (Interface)

Realization represents a contract between a class and an interface. A class that implements an interface must provide concrete implementations for the methods defined in the interface. This allows for polymorphism and code flexibility.

Example: A Shape interface defines methods for drawing and calculating the area, and classes like Circle and Rectangle implement this interface.

Another example is that Vehicle interface defines methods for starting and stopping, and classes like Car and Bike implement this interface.

Dependency

Dependency represents a depends on relationship where one class depends/relies on another class to function correctly. Meaning that an object of one class might use an object of another class in the code of a method or temporarily within its code. It is considered a weak relationship because the dependent (Client) class is only affected if the supplier class changes. They are not tightly coupled, but changes in the supplier can still impact the client.

• If the supplier class changes (for example, its interface, method signatures, or behavior), the client class may need to be updated to work with those changes

Example: A ReportGenerator class generates reports and uses a Printer class to print the reports. The ReportGenerator depends on the Printer to perform its function.

• ReportGenerator - Client
• Printer - Supplier

Another example is that Person class depends on the Book class to read books. However, the Book class does not depend on the Person class, meaning the Book can exist independently without the Person.

Usage (Dependency)

Usage Dependency is a type of dependency where one class (the client) uses another class (the supplier) for a specific purpose, usually within a method or temporarily. The client does not maintain a permanent reference to the supplier.

Example: A Mechanic class repairs a Car. The Mechanic uses the Car to perform repairs, but the Car does not depend on the Mechanic.

• Mechanic - Client
• Car - Supplier

Another example is that Chef class cooks a Dish. The Chef uses the Dish to prepare a meal, but the Dish does not depend on the Chef.

Full Example

Order Management System

1. Generalization (Inheritance)

   • RegisteredCustomer and GuestCustomer both inherit from Customer.
   • Meaning: Both types of customers share common attributes (like id, name, email) but also have their own specific attributes.

2. Realization (Interface Implementation)

   • PaymentMethod is an interface.
   • CreditCard and PayPal implement the PaymentMethod interface.
     • Meaning: Both payment types must provide a pay(amount: float): bool method.

3. Association

   • Customer "1" -- "0..*" Order : places
     • Meaning: One customer can place multiple orders; each order is placed by one customer.

4. Composition

   • Order "1" *-- "1" ShippingInfo : ships to
     • Meaning: Each order has one shipping info, and if the order is deleted, its shipping info is also deleted (strong ownership).

5. Aggregation

   • Order "1" o-- "1..*" OrderItem : contains
     • Meaning: An order contains multiple order items, but order items can exist independently of the order.
   • OrderItem "1" o-- "1" Product : refers to
     • Meaning: Each order item refers to a product, but products exist independently of order items.

6. Dependency

   • Invoice ..> Order
     • Meaning: An invoice is generated from an order, but the invoice does not own the order.

7. Usage Dependency

   • Order ..> PaymentMethod : uses
     • Meaning: An order uses a payment method to process payment (The Order just needs a PaymentMethod to complete the payment operation), but does not own the payment method.
